Introducing Azure Resource Explorer for the Azure Resource Management APIs

When managing Azure resources (Virtual Machines, Web Apps, etc) I like to do most of my work in Azure from the command line using the "Azure xplat cli" - the Azure Cross Platform Command Line Interface. It's an Open Source node.js app that you can get with "npm install -g azure-cli" and it calls the backend REST services that all of Azure uses to manage itself. In fact, when you are using the Azure Portal it's calling the same backend.

It's mostly an "Azure Noun Verb" structure, as you can see in the figure below. You can Azure Site Create or Azure VM Restart, etc.

You can ALSO add --json to the xplat cli to see a JSON representation of the result of your call. So Azure Site List --json gives you a lot more information than without the json switch.

There's a PowerShell interface to Azure, this xplat nodejs one I'm using, as well as other libraries like the Azure Management Libraries for .NET again, all calling the backend REST API.

However, that REST API is huge and confusing. Enter David Ebbo, a Principal Development Lead on the Azure App Platform. He's made the Azure Resource Explorer at https://resources.azure.com as a great way to explore the Azure Resource Management APIs visually and interactively!

And, wait for it, Azure Resource Explorer is, of course, Open Source and hosted here at GitHubhttps://github.com/projectkudu/ARMExplorer. It's a preview/beta and not done, but we're all interested in what YOU think! Does it do what you'd expect? Feel free to add issues and get involved in the repository.

Go hit http://resources.azure.com/ and login with your Azure Credentials. It's an Object Explorer if you've ever used Visual Studio to move around a large object model, except this is a resource try of all the hypermedia nodes within your view of Azure.

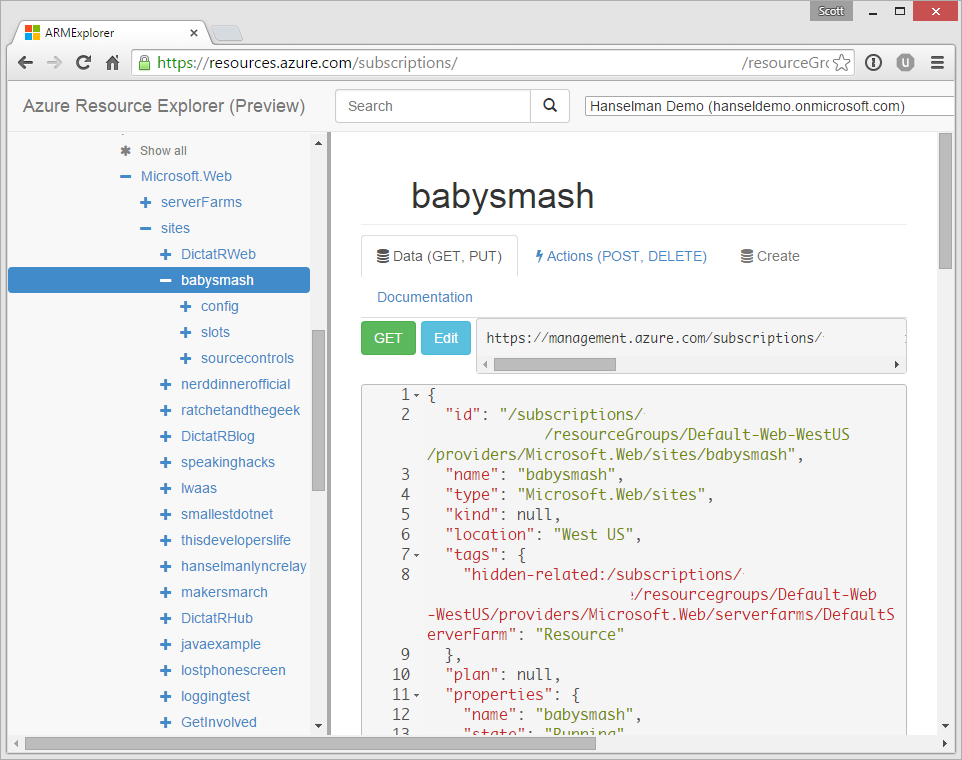

Here I am moving around my Web Applications that I host in the West US Region of Azure. I can see the deployment slots for staging and production, the source control system and web hooks that deploy my site and lots more. Notice that I can click Actions as well, and (when I turn Read-Only off) perform POST and DELETE calls that will affect my Azure resources.

If you're familiar with Postman, the REST API development tool, this is kind of like Postman for Azure. Here's a 5 min YouTube video by David Ebbo walking you through the Azure Resource Explorer.

To be clear, this is NOT a new Portal, and it IS very low level. This is a tool for folks who want to know what's really going on when an Azure API is called. Perhaps you're creating your own explorer or your own API client in another language. This tool can give you documentation and live examples on how to call those APIs correctly.

Again, it's Open Source and hosted here at GitHub. They would be thrilled to hear your thoughts. Is this useful? In what direction would you like it to go?

By the way, if you'd like to try Azure for an hour for free without signing up for any trials or anything, go check out http://try.azurewebsites.net and play! Also, check out Azure Friday at http://friday.azure.com and subscribe on iTunes.
